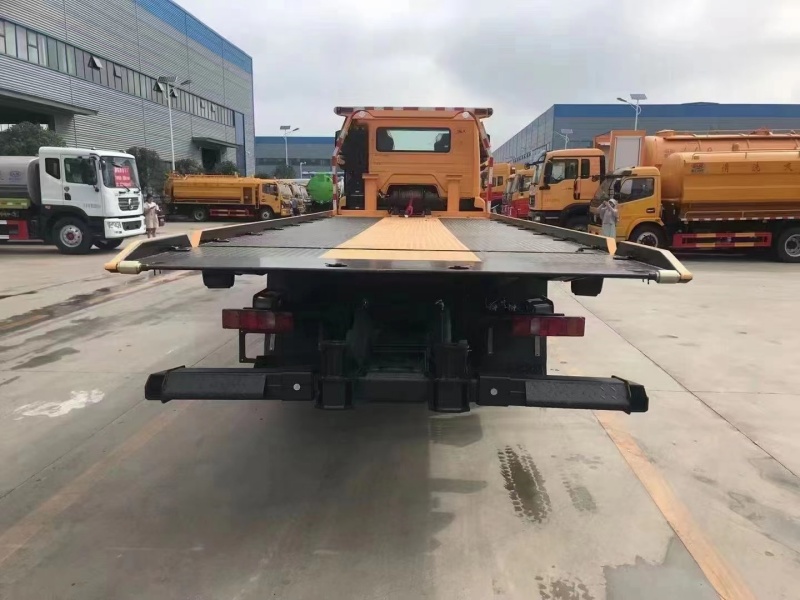

HOWO 4*2 10 ton one-tow-two wrecker truck
Chassis configuration: HOWO N; basic model; special vehicle; recovery vehicle; luxury version; manual rearview mirror; main airbag + auxiliary simple seat; 4-cylinder Weichai 220 hp engine or 6-cylinder Weichai 245 hp engine, VGD71 self-adjusting arm front axle (drum); MCJ11BG self-adjusting arm single rear axle (drum); speed ratio 4.63; three-layer frame (8+8+5/300); front and rear standard multi-leaf springs (9/9+6); domestic steering gear; speed limit 89 km/h; standard exhaust system; ABS (4S/4M); high-mounted bumper (metal); ordinary wheels; 10.00R20; 300L fuel tank; cable-type PTO; Sinotruk Smart Connect D version
Upper configuration: 10-ton upper structure, 10-ton winch, 10-ton three-section split rear boom, tail hydraulic turnover plate, sinking process, reinforced main beam, imported valve, 6mm checkered plate, plate length about 8.2 meters, main plate about 7 meters, tail hydraulic turnover plate about 1.2 meters, plate width 2.55 meters. 2 sets of fixed forks, 1 set of fork holder, 6 straps, additional air hose connector, yellow warning lights, chassis certificate, vehicle certificate, user manual, maintenance manual. (Optional 16-thick manganese plate frame)
Technical parameters: The height of the board above the ground is about 1.3 meters, the maximum load capacity of the 10-ton upper structure is about 12 tons, the curb weight is 12,450 kg, and the total weight is 18,000 kg.
If you want to learn more about the configuration of the wrecker truck, please contact us
